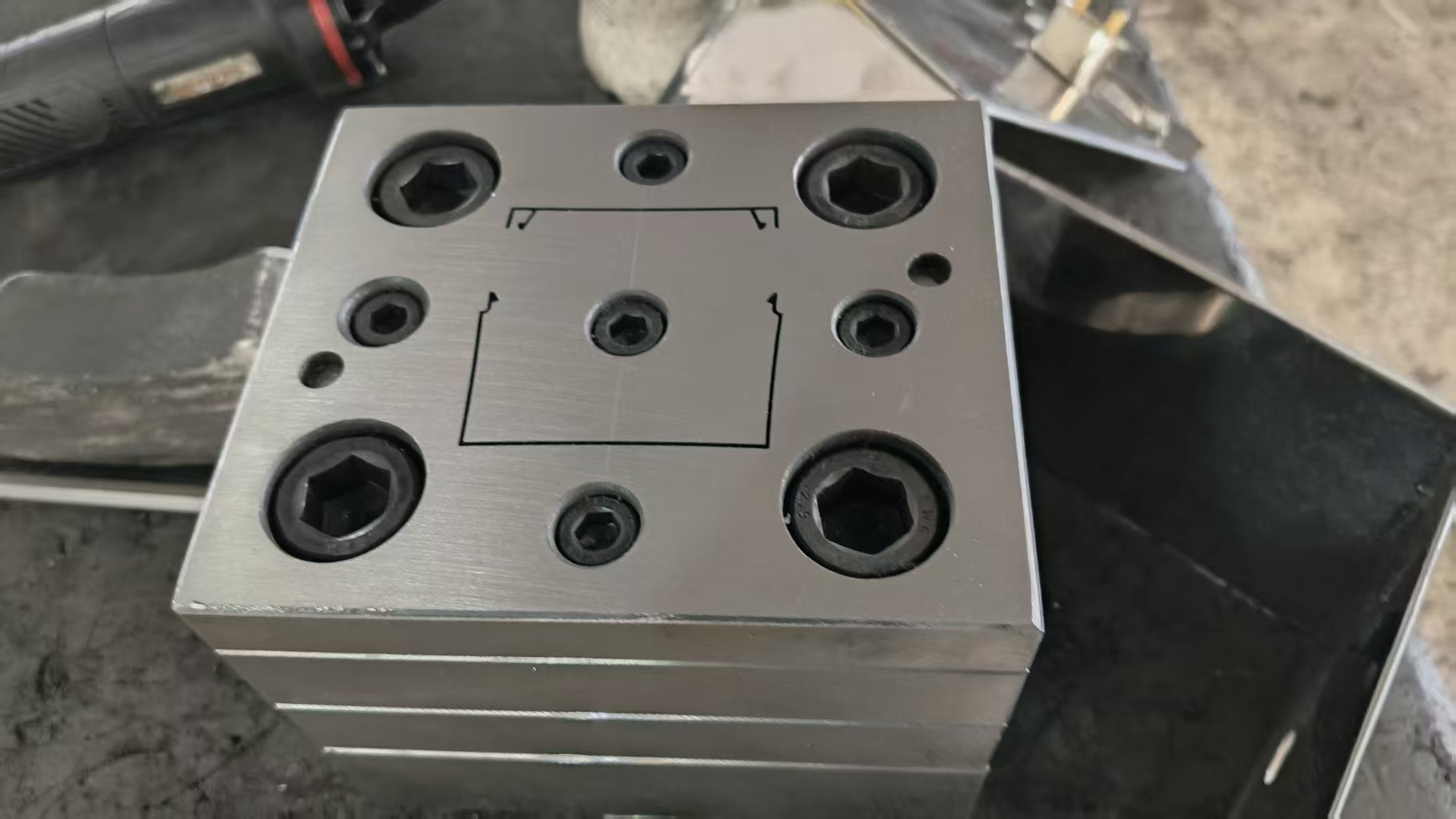

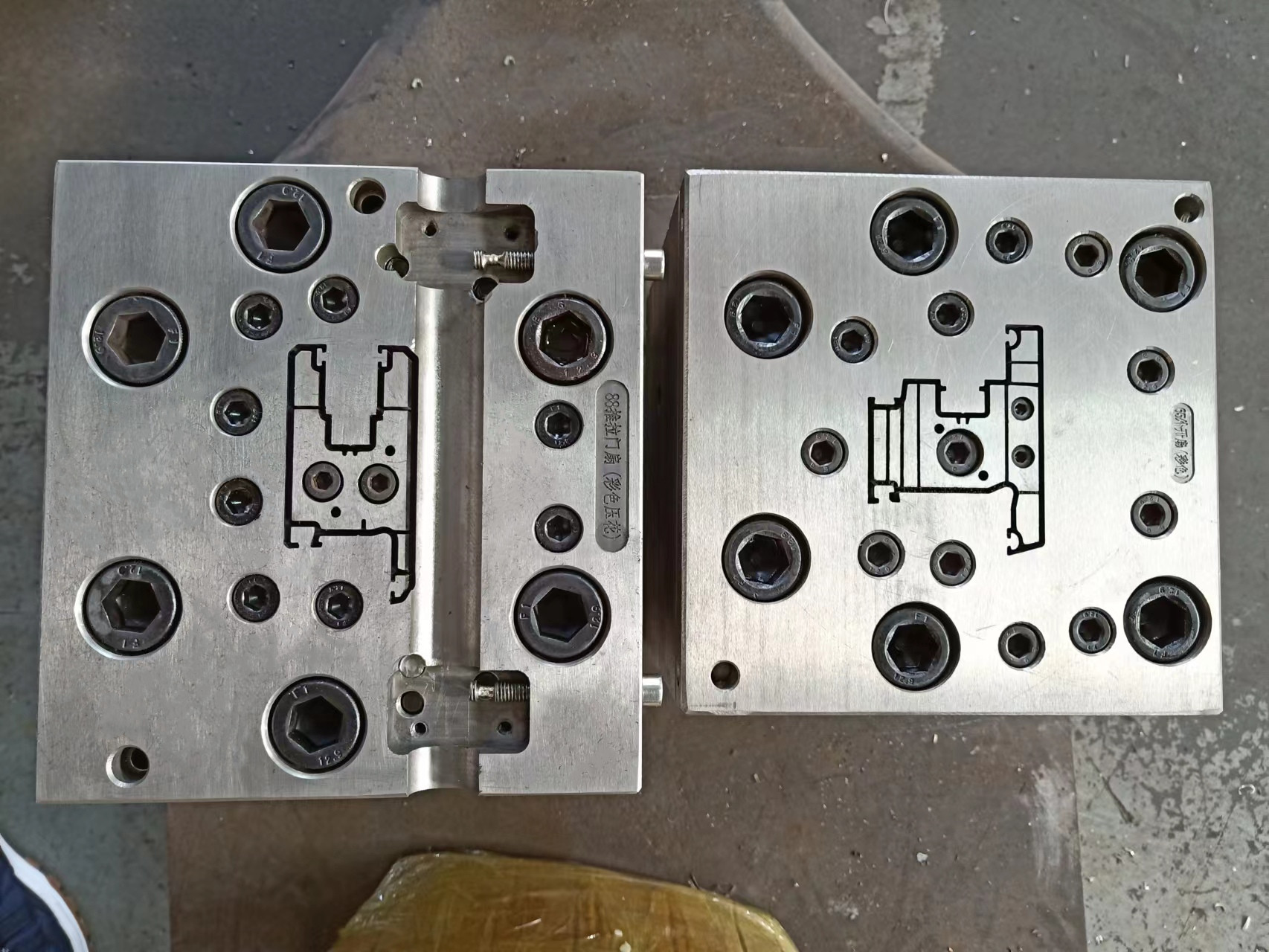

UPVC Window door frame Extrusion Die
- Zhongjie extrusion die
- China
- 25 days
- 100 sets per month
1. Mirror polishing 3cr17 stainless steel extrusion mould
2. 1 year warranty
3. Technical guidance and good after sales service
4. Factory price and high quality
DIE
1) Die design is based on flow simulations on our computer, flow analysis and experience, that leads to excellent flow characteristics.
2) High precision positioning pin design guarantees accurate plate assembly
Calibrator
uses high efficient vacuum device and cooling system design to guarantee great quality of finished products and smooth profile surface
Water/vacuum tank
a) Newly designed water/vacuum tanks supply vacuum and cooling water
b) High quality materials and unique design ensures high efficient cooling and proper seal to maintain constant water and vacuum supply in the tank
c) Self adjusting templates guarantee final sizing of profile
d) Tank material available: Plexiglas or fiberglass
e) High-sealing vacuum water tank of PVC window mould adopts floating setting design, able to adjust automatically
Fine quality after-sale service:
1.Our company has high level of technology,rich experiences in testing mould and good reputation service team.
2.Principles of service: First testing combined with tracking service
Orientation services linked with peripatetic service
Technical services united with training endorsement
3.Replying clients' problems in time ,and the technical can be arrived in three days.
4.One year warranty for the mould,and maintain for the whole life.
Product test results
NO. | Test Items | Technical Requirements | Units | Measured Value | Single Conclusion |
1 | Extrusion speed | 0.8-1.8 | m/min | 0.87 | conform |
2 | Yield | >98 | % | 99 | conform |
3 | Thickness deviation | <1.2 | mm | 0.24 | conform |
4 | Water absorption | ≤3.0 | % | 1.0 | conform |
5 | Density | ≥0.85 | g/ cm³ | 1.38 | conform |
6 | Tightness | No leakage | / | conform |
Product line:
Mould composition:
Our export mould :
If you are interested in our moulds, please feel free to contact with us and show us your sample picture or drawings.We will do our best to provide you with competitive price and professional service!
